Armoured Joints
"The expansion joint is the only moving part of a concrete floor. We make it the strongest."

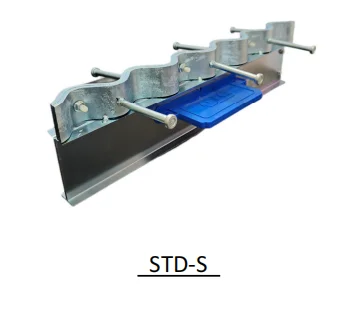

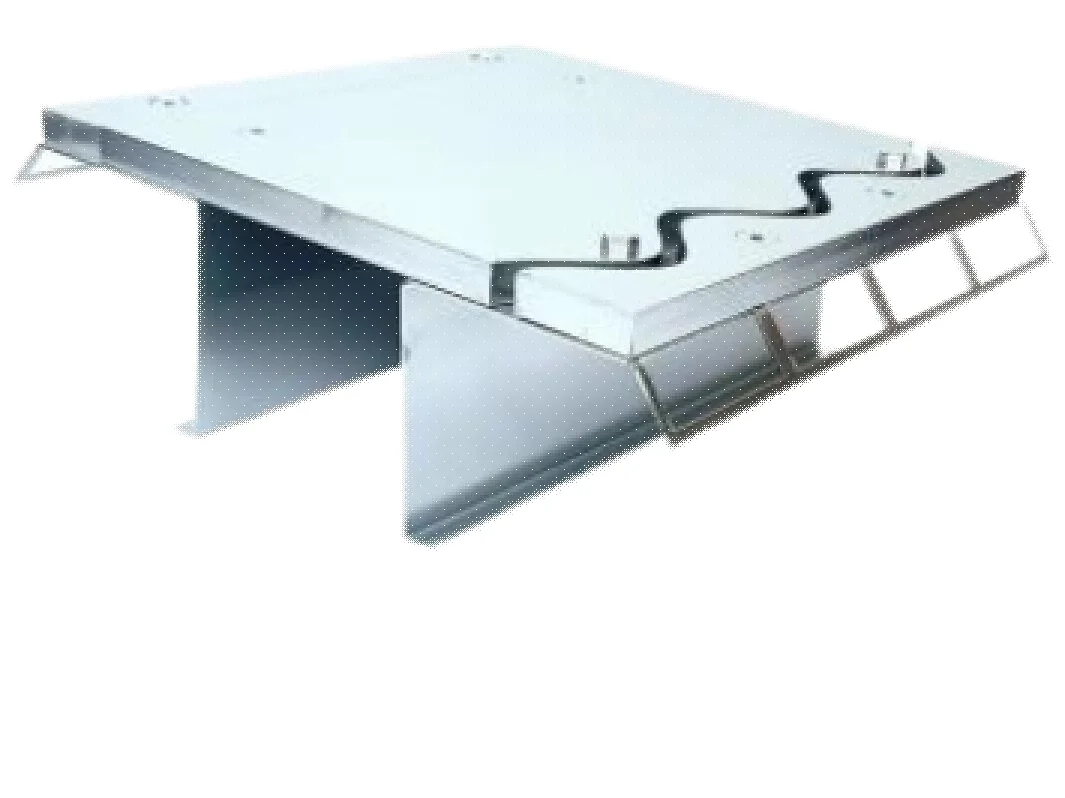

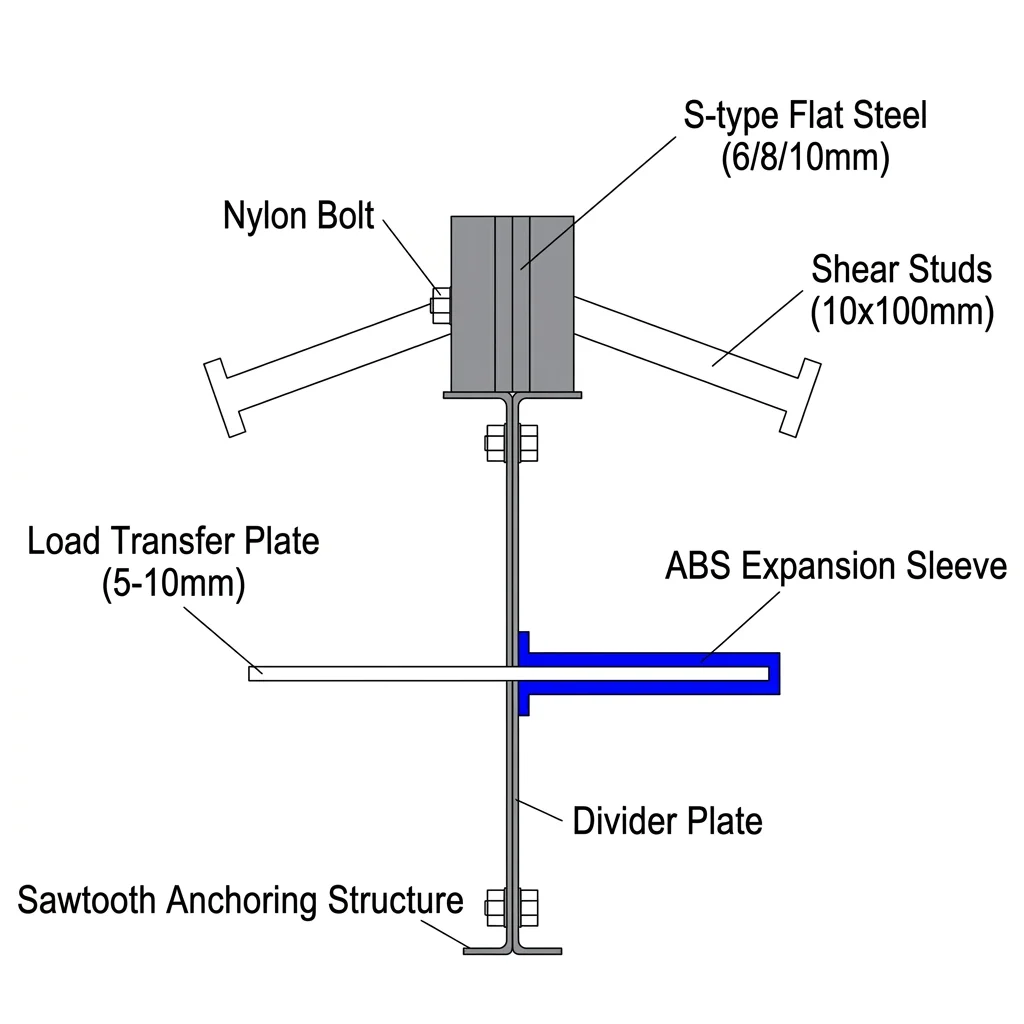

STD-S SINUSOIDAL (Zero-Impact)
The premium choice for AGV-driven logistics and high-speed transit. The wave-form steel plate ensures wheels never leave the surface, eliminating impact noise and vibration.
- Zero impact to forklift wheels and AGV sensors.

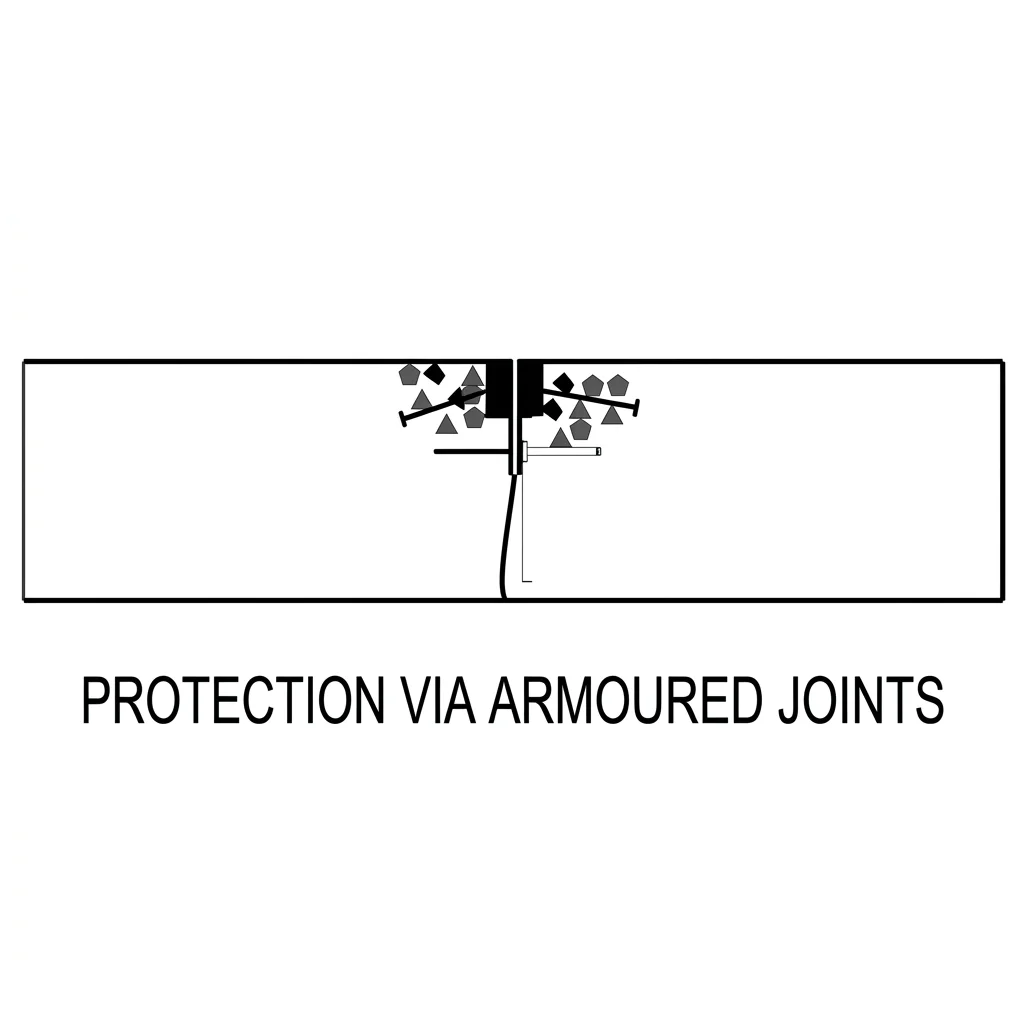

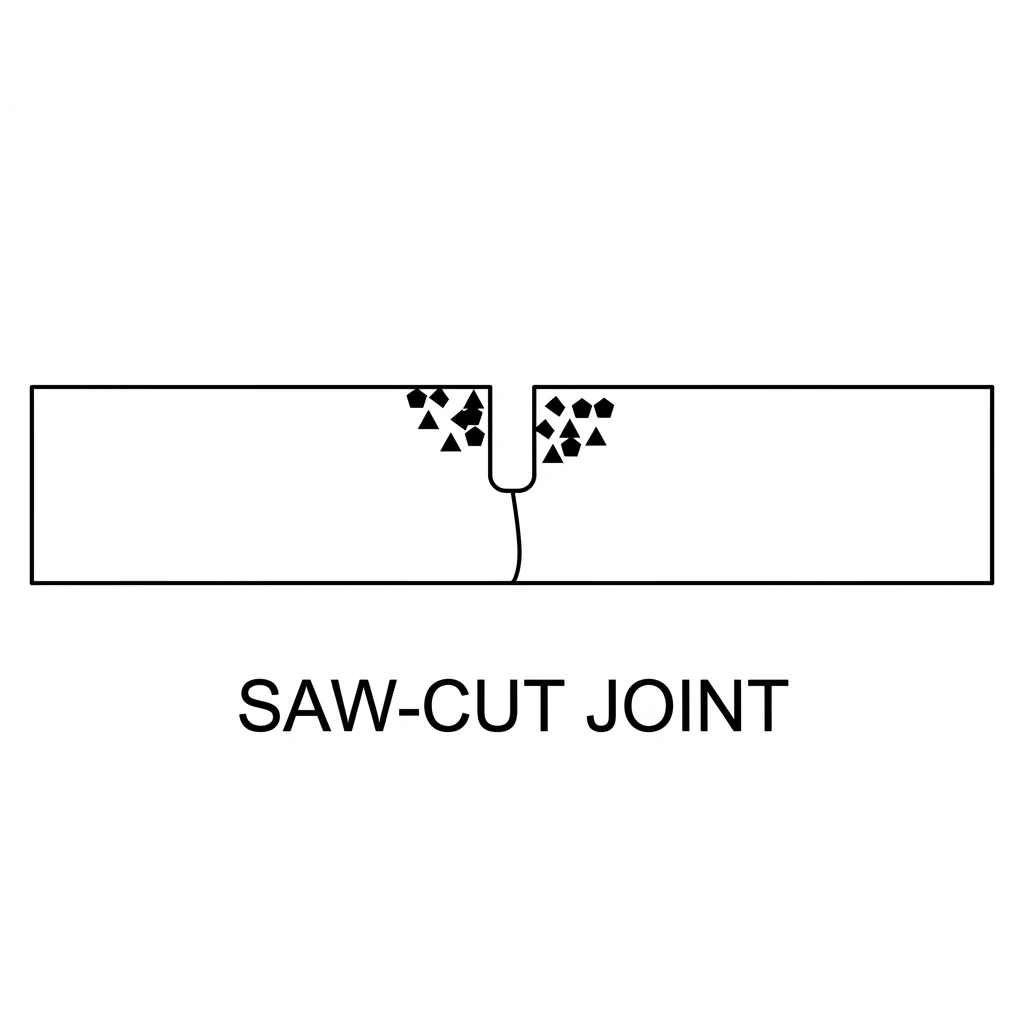

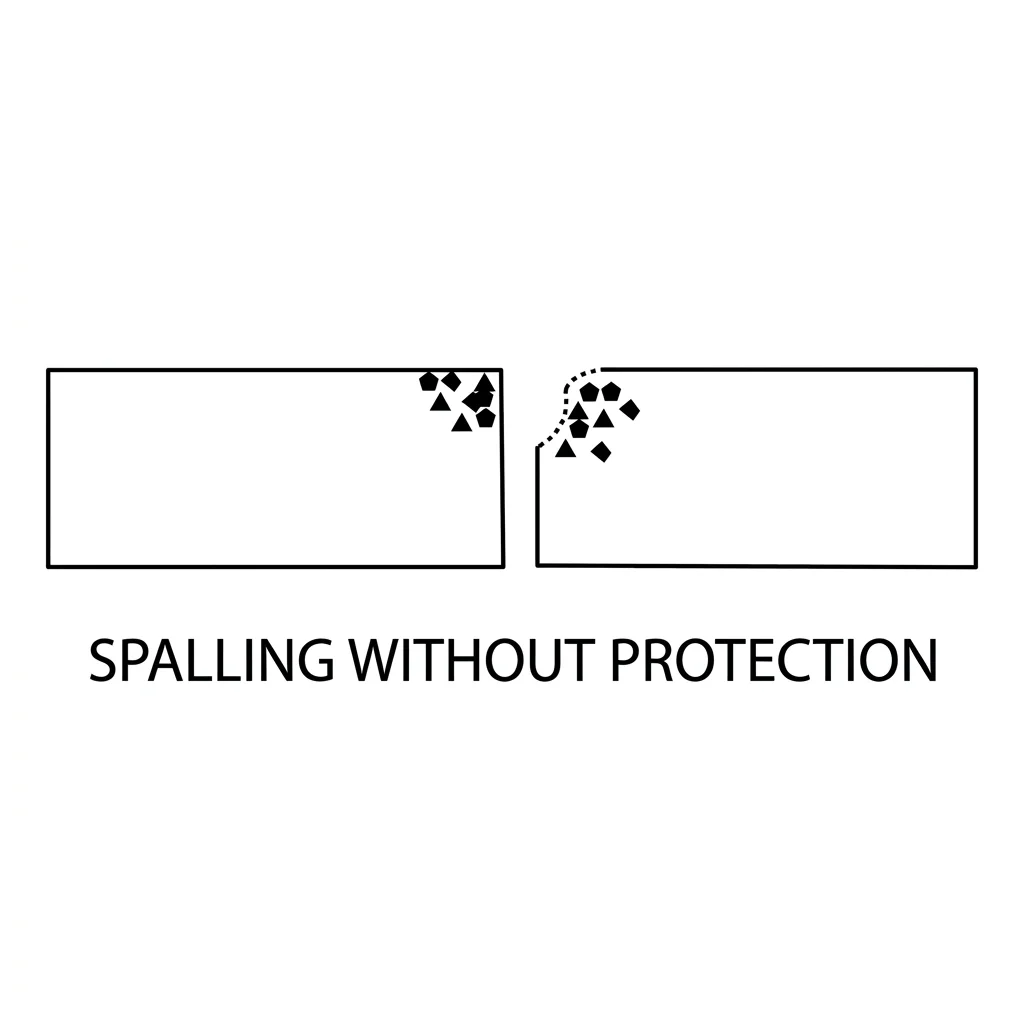

- Eliminates edge spalling and maintenance downtime.
- Permanent formwork solution - no need to remove templates.

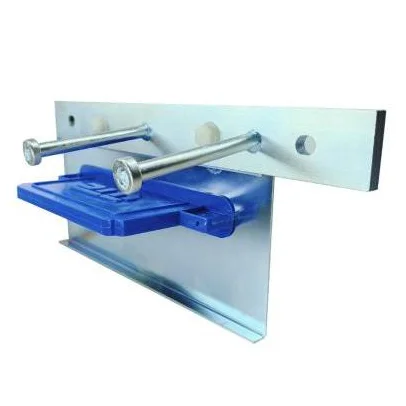

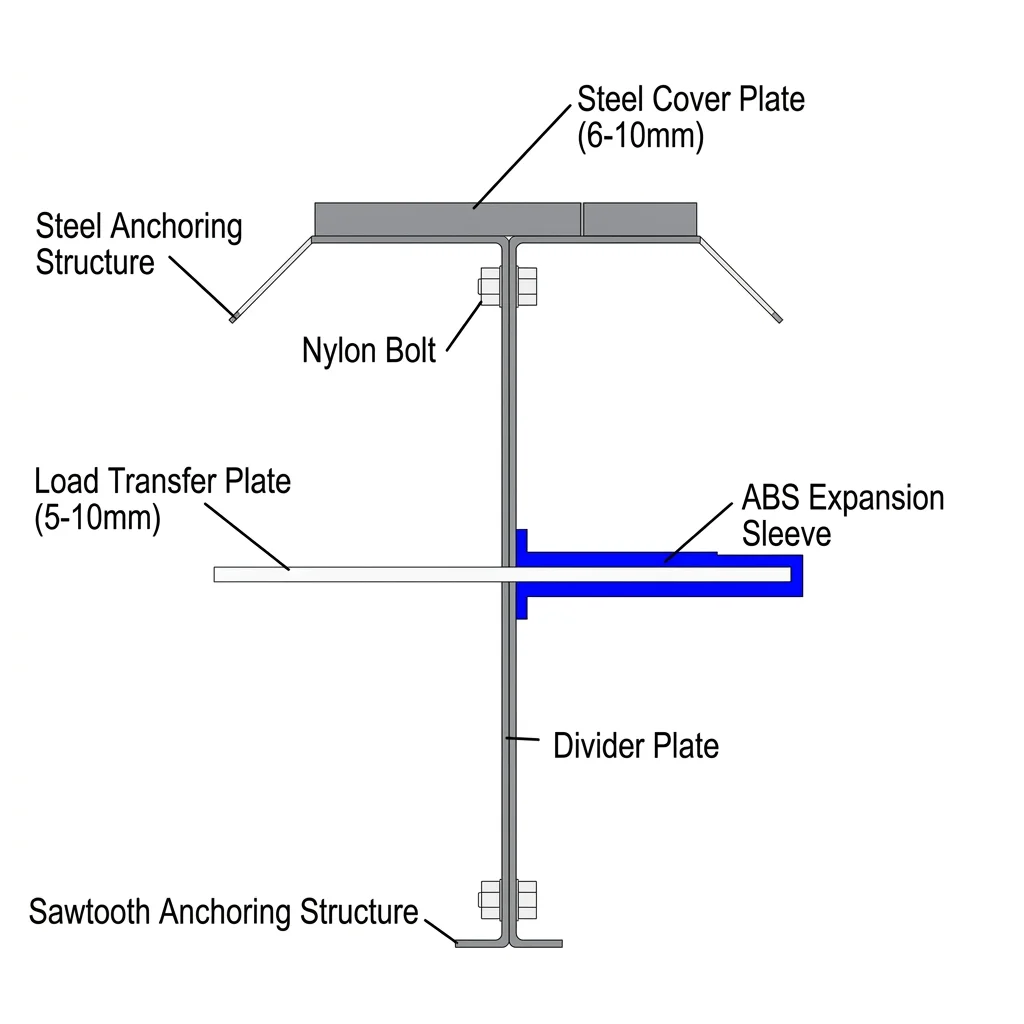

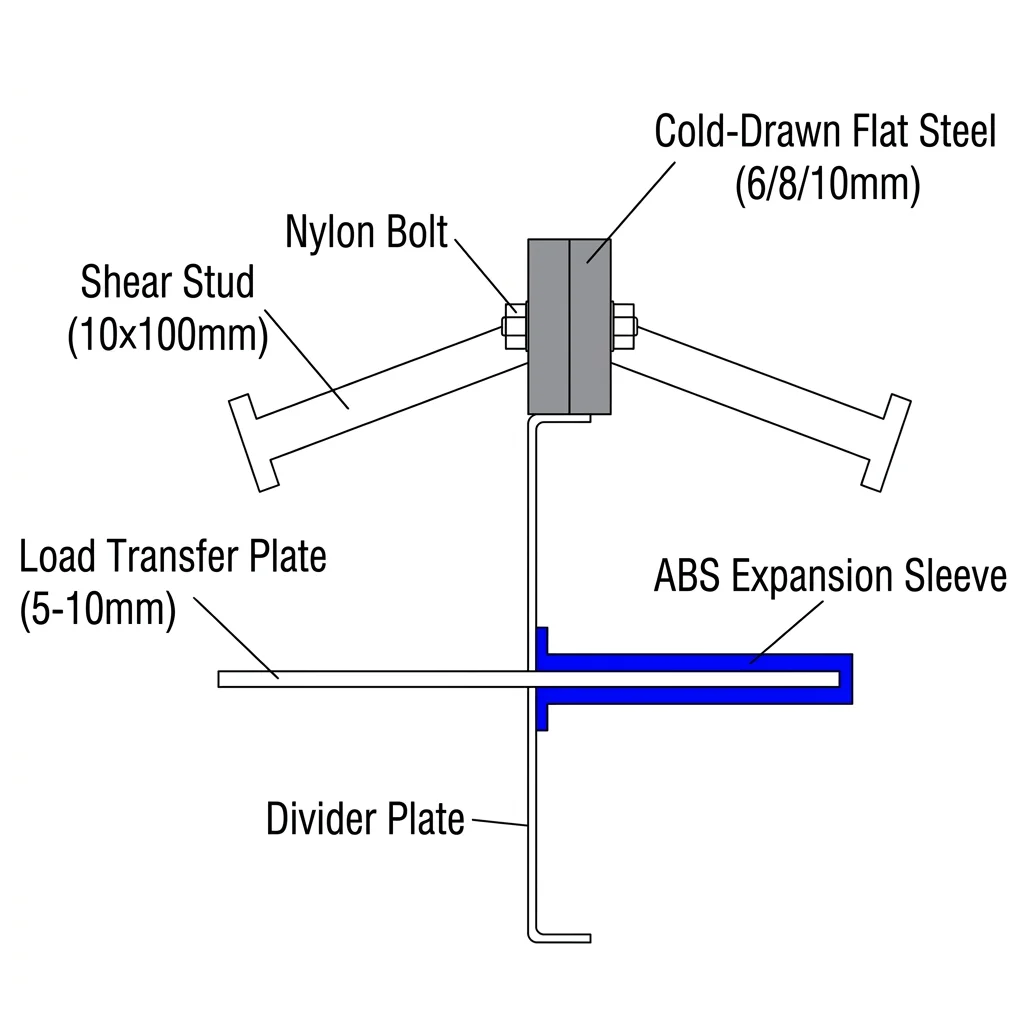

STD-1 Heavy Duty
Cold-pulled galvanized steel with 10mm shear studs. Designed for high-load industrial floors, heavy manufacturing, and exterior slabs.

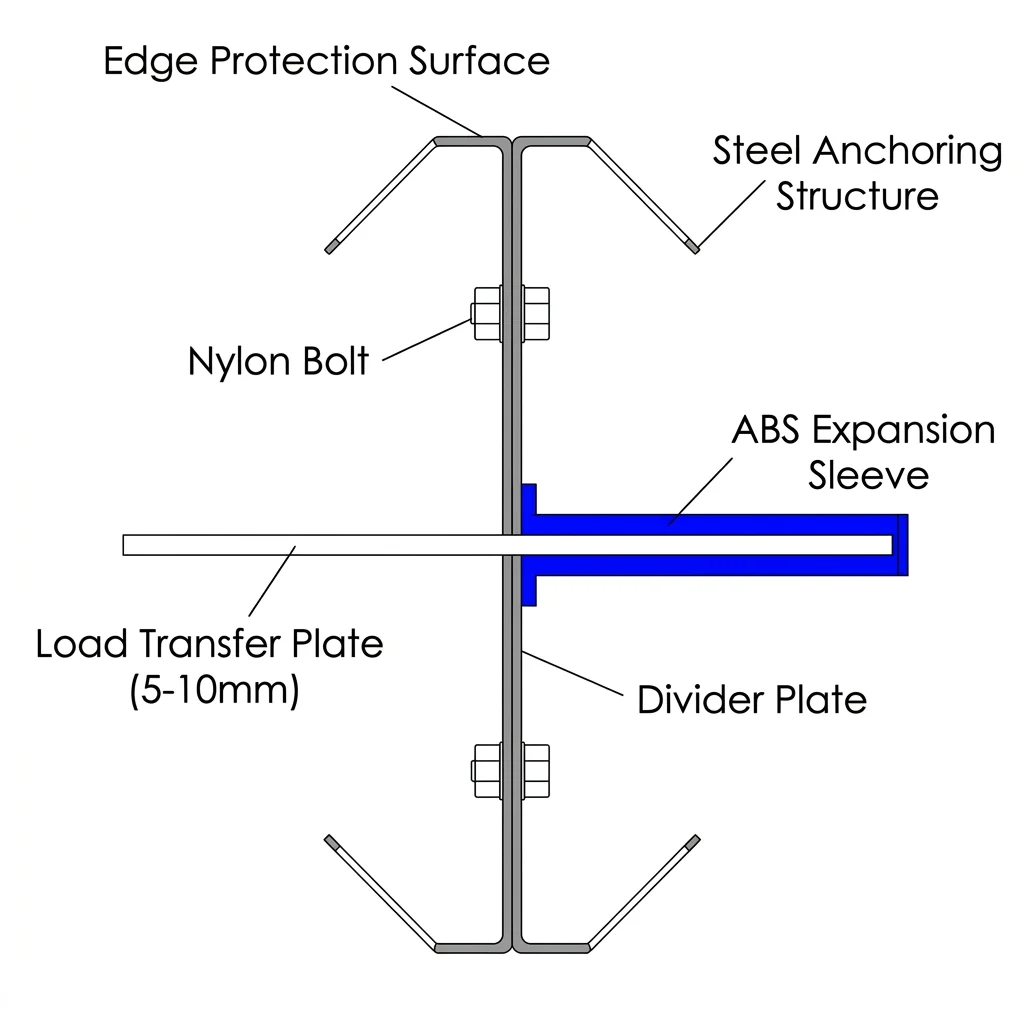

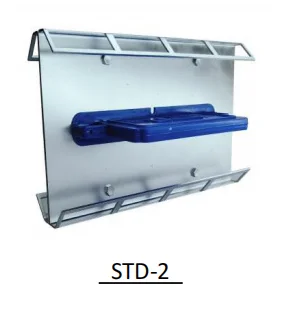

STD-2 Distribution
Optimized for logistics centers and large retail slabs. Provides superior edge protection with balanced economic value.
| Feature | Technical Specification |
|---|---|
| Material | Q235 / Galvanized Cold-Pulled Steel |
| Slab Depth | 100mm to 300mm (Customizable) |
| Transit Support | Suitable for AGV, VNA, and Heavy Forklifts |
| Standard Length | 3000mm per section |
